MATRIX HD ETHERNET NEW



 Receiver HD termurah kualitas ga murahan...............
 Full HD.....................
 Fly lancar jaya.........
 Minat......... hubungi : 085290037292

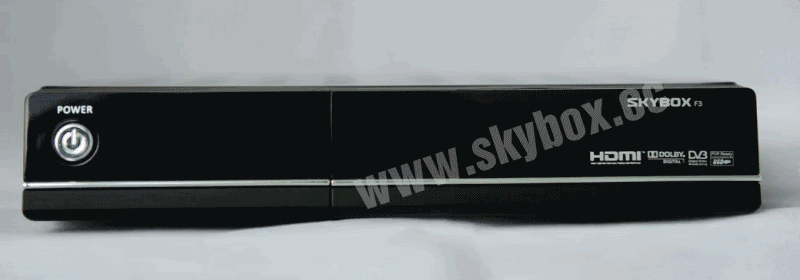

Receiver HD

SKYBOX F3

Dual CPU, 396 MHz MIPS Processor

Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;

Fully compliant MPEG-2 MP@HL & MP@ML;

Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);

SCPC & MCPC receivable from C/Ku band satellites;

multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)

NIT search supported;

Support MPEG-5;

Support HDMI 1.3;

Support PVR(store in USB disk);

Multimedia files playback(by USB);

Support Electronic Program Guide(EPG) for 7 days;

Teletext and subtitle out through OSD;

Support multi-lingual DVB subtitle and teletext;

Automatic and manual channel scan options;

automatic service scan

channel-change time < 1 second

OSD in many languages and skin-support

Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland,Holland, Turkish, Czech, selectable

LED Display

Multiple display mode: 1080p/1080i/720p/570p/576i/480p;

MPEG-2 / H.264 Hardware decoding

Videotext Decoder

Analog audio output: stereo(L+R);

Digital audio output: S/PDIF by coaxial and optical;

S/PDIF Interface for digital bit stream out (AC-3)

YCbCr available;

2 x Scart (RGB, FBAS or S-Video)

Screen format:auto, 4:3, and 16:9;

Upgrade software through USB2.0 port;

Powerful program management function, parent lock;

CA 1x slot

10/100Mbit Ethernet Interface

directly bouquet-lists

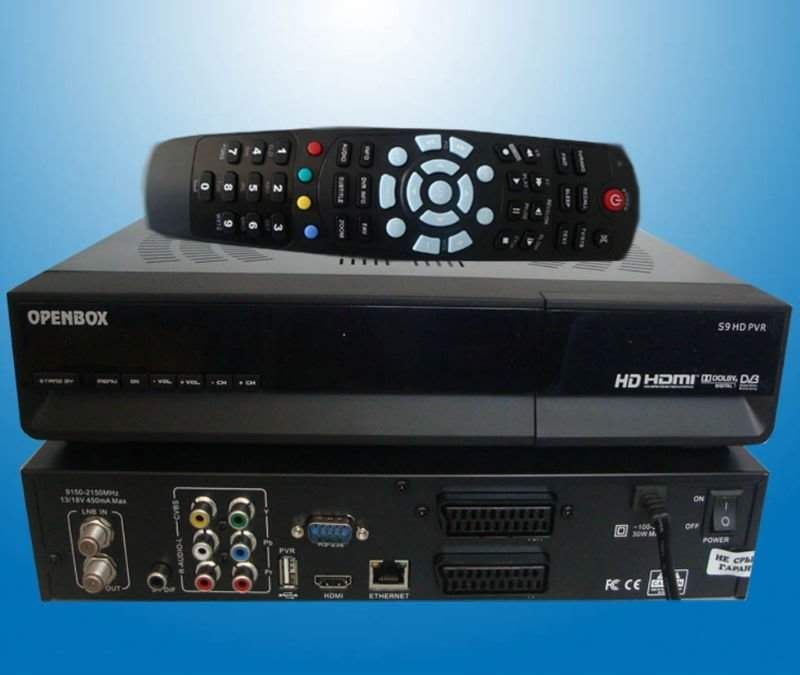

OPENBOX S9 HD PVR

OPENBOX S9 HD PVR receiver General Specifications:

1) 300 MHz MIPS Processor - Linux Operating System
2) Fully compliant MPEG-4 H.264/AVC Main Profile Level 3?& High Profile Level 4.1;
3) Fully compliant MPEG-2 MP@HL?& MP@ML;
4) Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
5) SCPC & MCPC receivable from C/Ku band satellites;
6) multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
7) NIT search supported;
8) Support MHEG-5;
9) Support HDMI 1.3;
10) Support PVR(store in USB disk);
11) Multimedia files playback(by USB);
12) Support Electronic Program Guide(EPG) for 7 days;
13) Teletext and subtitle out through OSD;
14) Support multi-lingual DVB subtitle and teletext;
15) Automatic and manual channel scan options;
16) automatic service scan
17) channel-change time < 1 second
18) OSD in many languages and skin-support
19) Multilingual support on screen menu (OSD): English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech, selectable;
20) LED Display
21) Multiple display mode: 1080i/720p/570p/576i/480p;
22) MPEG-2 / H.264 Hardware decoding
23) Videotext Decoder
24) Analog audio output: stereo(L+R);
25) Digital audio output: S/PDIF by coaxial and optical;
26) S/PDIF Interface for digital bit stream out (AC-3)
27) YCbCr available;
28) 2 x Scart (RGB, FBAS or S-Video)
29) Screen format:auto, 4:3, and 16:9;
30) Upgrade software through USB2.0 port;
31) Powerful program management function, parent lock;
32) CA 1x slot and CI 1xslot
33) 10/100Mbit Ethernet Interface
34) directly bouquet-lists

MORE SPECIFICATIONS ABOUT OPENBOX S9 HD PVR receiver

DVB-S2	Input Frequency:950~2150MHz Loop Out Frequency:950~2150MHz Input Level:-65~-25dBm Input Impedance:75|? LNB Power: Auto/14v/18v/OFF, Imax = 500mA
Video decoder	Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device
Audio decoder	Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output digital	Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink
Video parameter	Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard
TV-Scart	Output: FBAS, RGB, S-Video
Serielle Interface RS 232	Typ RS232 bidirectional Bit rate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware
Ethernet	10/100 MBit compatible interface Function: Update of Firmware
USB	1 x USB 2.0 Host ,PVR
LNB power and polarisation per tuner	LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position	DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control
External PSU	Input:110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0A
Physical specification	Ambient Temperature +15 ��C...+35 ��C Humidity < 80% Size (W x D x H): 300 mm x 220 mm x 56 mm Weight: 1,8 kg? without HDD
Power	AC input range:100-240VAC 50/60Hz Power Consumption (Standby): Max. 10W (<1 W)?

DM 800 HD PVR

Main features are a 300 MHz processor the Dreambox DM 800 HD PVR supports the Linux TV API

Have a look to HighDefinition TV on your Dreambox

• 10/100MBit compatible Ethernet Interface
• DVI connector
• plug & play Tuner
• brilliant OLED display
• SATA for use either as internal HDD 2,5“ or eSATA


Technical Features

•  300 MHz MIPS Processor
•  Linux Operating System
•  OLED - Display
•  MPEG-2 / H.264 Hardware decoding
•  Tuner: DVB-S, optional: DVB-C, DVB-T
•  Tuner Module, Plug&Play
•  1 x Smartcard-Reader (Dreamcrypt CA)
•  V.24/RS232 Interface
•  10/100Mbit Ethernet Interface
•  1 x Scart (RGB, FBAS or S-Video)
•  DVI
•  2 x USB 2.0
•  analog modem
•  S/PDIF Interface for digital bit stream out (AC-3)
•  64 MByte Flash, 256 MByte RAM
•  SATA
•  for use either as internal SATA HDD 2,5“
•  or to use for external eSATA

•  unlimited channel lists for TV/Radio
•  channel-change time < 1 second
•  automatic service scan
•  directly bouquet-lists
•  EPG (electronic program guide)
•  multiple LNB-Switching control (supports DiSEqC)
•  OSD in many languages and skin-support
•  Videotext Decoder
•  extern 12V power supply

DreamBox DM 800 HD PVR technical data

DBS-Tuner mit DVB-S2:
Frequency Range  950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

Analoge modem:
analoge modem for Internet connection

SATA Interface:
   - for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD

USB
2 x USB 2.0 Host

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 15W at 12V

External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A

Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 195 mm x 140 mm x 40 mm
Weight: 1,8 kg  without HDD
